SERIES: PowerEdge R-Series

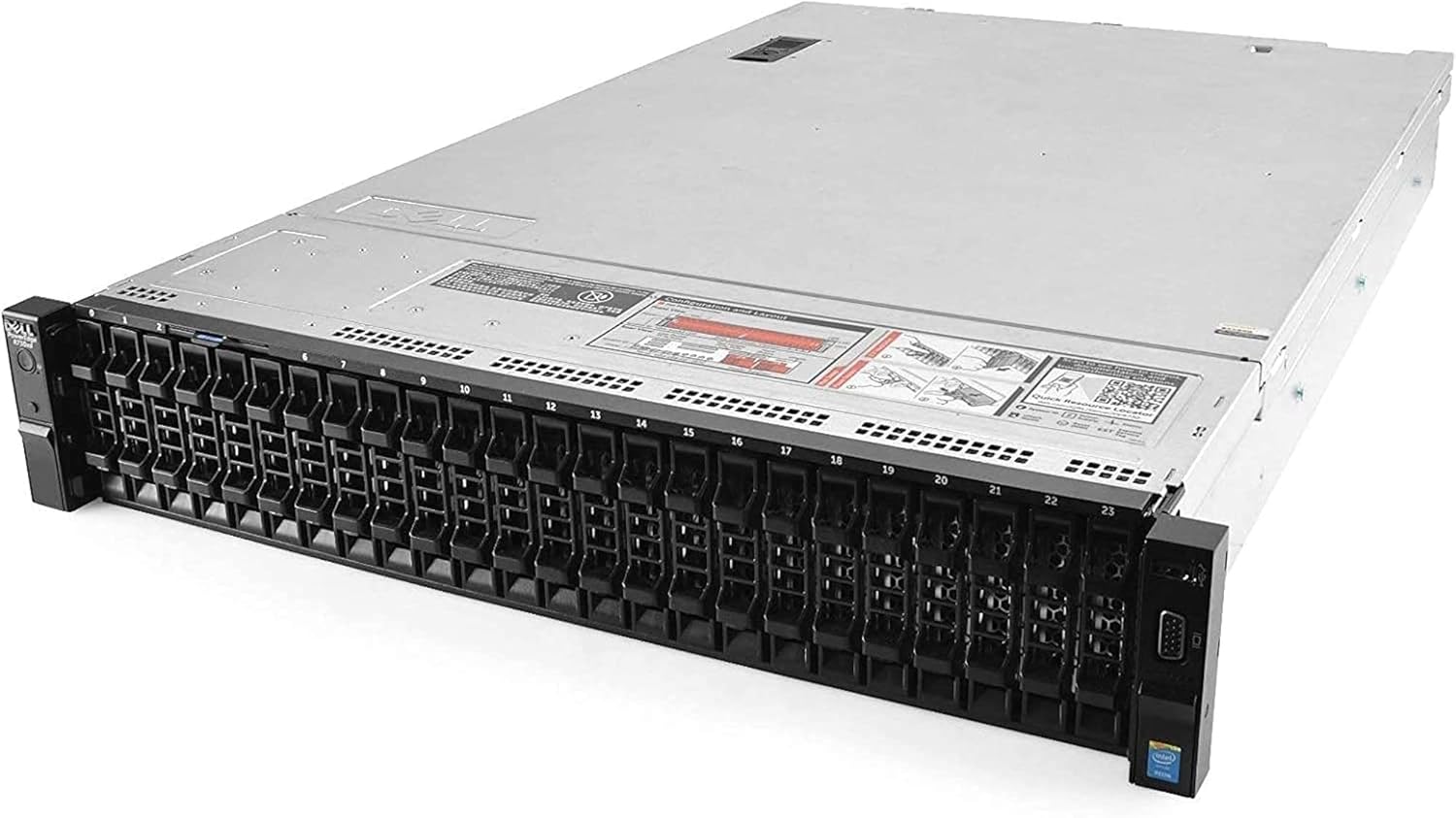

MODEL: PowerEdge R730xd
BRAND: Dell
PLATFORM: Enterprise Server
SUPPORTS: VMware ESXi, Windows Server, Linux, Hyper-V
SPECIAL FEATURES: iDRAC8 with Lifecycle Controller, redundant power supplies, hot-swappable drives, tool-less chassis
FEATURES: Dell OpenManage compatible, Trusted Platform Module (TPM) 1.2/2.0, cable management arm option
DETAILS: Enterprise-grade 2U server with high storage density and expandability
HARD DRIVE: 4x 1.2TB 10K SAS 2.5" 12Gb/s
STORAGE (RAW): 4.8TB
DRIVE BAYS: SAS/SATA HDD/SSD
EXPANSION SLOTS: 24x 2.5" hot-swap bays
VIDEO: Integrated Intel Graphics
LAN: X540/I350 NIC (2x 10Gb SFP+ + 2x 1Gb RJ45)
VIDEO OUTPUT: VGA
REAR PORTS: 2x 10Gb SFP+, 2x 1Gb RJ45, 2x USB 3.0, 1x VGA, 1x serial
USB PORTS: 2x USB 3.0 (front), 2x USB 3.0 (rear)
CPU: 2x Intel Xeon E5-2690 v4 2.6Ghz 14-Core (28-cores Total)
CPU SPEED: 2.6GHz base, up to 3.5GHz turbo
BASE / TURBO: 2.6GHz
CORES: 28
THREADS: 56
CACHE: L2: 14x256KB, L3: 35MB per processor
SOCKET: LGA 2011-3
SUPPORTED CPU: Intel Xeon E5-2600 v3/v4
THREADS: Intel
CACHE: Broadwell-EP
SOCKET: LGA 2011-3
INSTALLED: 128GB DDR4 (3TB Max)
SPEED: 2400MHz
MODULE SIZE: 128GB
TECHNOLOGY: DDR4 ECC Registered
SLOTS: 24
MAX CAPACITY: 3TB
MODULE CAPACITY: 4.8TB
TYPE: SAS HDD
SPEED (MT/s): 10K RPM, 12Gb/s
VOLTAGE: 1.2V
CHIPSET: Intel C610 Series
HEAT SPREADER:Yes
OTHER I/O: 1x SD card slot (optional), 1x dedicated iDRAC port
FORM FACTOR: 2U Rackmount
CASE TYPE: 2U Rack Server
COLOR: Black
DIMENSIONS: 3.44 x 17.5 x 29.9 inches (87.4 x 444.5 x 759.3 mm)
POWER SUPPLY: 2x 750W Platinum efficiency power supplies
FANS: Optimized cooling with multiple fan zones
OTHER INFO: Includes front bezel, 2x 750W PSUs (renewed with 90-day warranty)
