SERIES: PowerEdge R-Series

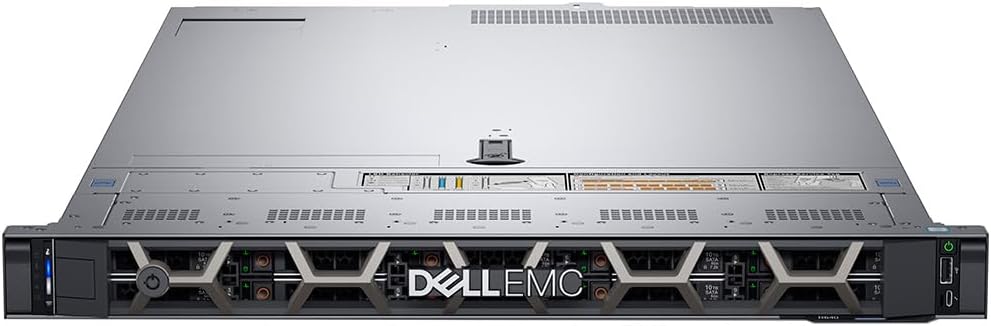

MODEL: PowerEdge R640
BRAND: Dell
PLATFORM: Enterprise Server
SUPPORTS: VMware ESXi, Windows Server, Linux, Hyper-V
SPECIAL FEATURES: iDRAC9 with Lifecycle Controller, redundant power supplies, hot-swappable drives, tool-less chassis
FEATURES: Dell OpenManage Enterprise compatible, Trusted Platform Module (TPM) 2.0, cable management arm option
DETAILS: Enterprise-grade 1U server with high core count and memory capacity
HARD DRIVE: 4x 1.92TB SSD SATA 2.5' - 6GBPS + 4x Dell 2.5' 14th Gen Caddies / Sleds - 7.7TB Total Storage
STORAGE (RAW): 7.7TB
DRIVE BAYS: SAS/SATA HDD/SSD, NVMe (with optional backplane)
EXPANSION SLOTS: 8x 2.5" hot-swap bays
VIDEO: Integrated Video Card
LAN: Quad-Port 1GB RJ-45
VIDEO OUTPUT: VGA (optional via add-on card)
REAR PORTS: 4x RJ-45 (1GbE), 1x iDRAC dedicated port, 1x VGA, 2x USB 3.0
USB PORTS: 2x USB 3.0 (front), 2x USB 3.0 (rear)
CPU: 2x 2.10Ghz Intel Xeon Gold 6130 16-Core 125W Skylake Processors - Total of 32x Cores
CPU SPEED: 2.10GHz base, up to 3.70GHz turbo
BASE / TURBO: 2.10GHz
CORES: 32
THREADS: 64
CACHE: L2: 16x1MB, L3: 22MB per processor
SOCKET: LGA3647
SUPPORTED CPU: Intel Xeon Scalable Processors
THREADS: Intel
CACHE: Skylake-SP
SOCKET: LGA3647
INSTALLED: 16x 16GB PC4-21300 ECC Registered (2666Mhz) - 256GB Total Memory
SPEED: 2666MHz
MODULE SIZE: 256GB
TECHNOLOGY: DDR4 ECC Registered
SLOTS: 16
MAX CAPACITY: 3TB (using 128GB LRDIMMs)
MODULE CAPACITY: 7.7TB
TYPE: SATA SSD
SPEED (MT/s): 6Gbps
CHIPSET: Intel C620 Series
HEAT SPREADER:Yes
OTHER I/O: 1x Serial, 1x SD card slot (optional)
FORM FACTOR: 1U Rackmount
CASE TYPE: 1U Rack Server
COLOR: Black
DIMENSIONS: 28 x 10 x 20 inches (711.2 x 254 x 508 mm)
POWER SUPPLY: 2x Dell 750W Platinum AC 100V-240V PSUs
FANS: Optimized cooling with dual fan banks and thermal control

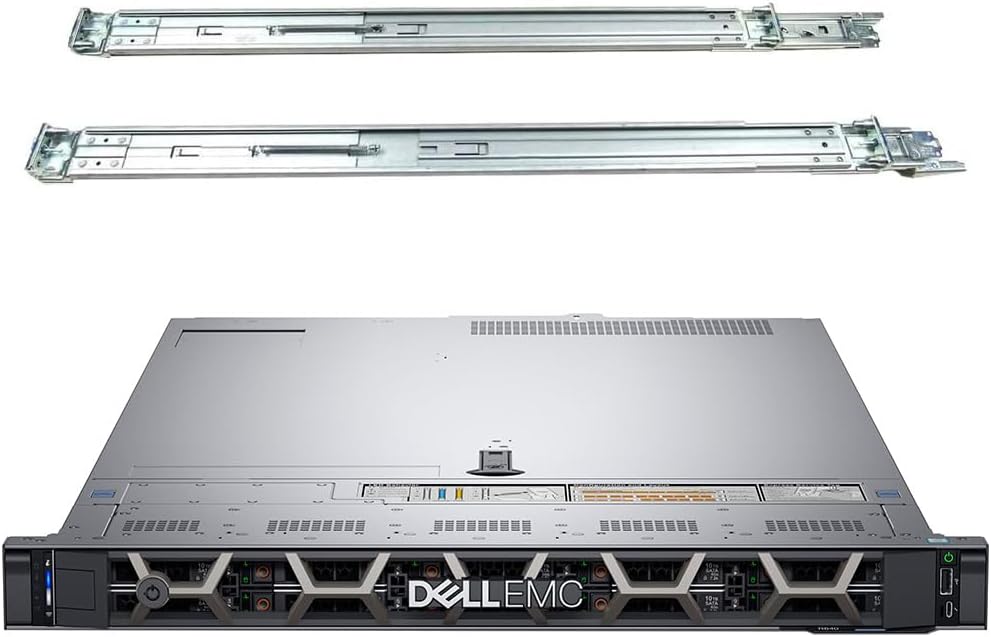

OTHER INFO: Includes sliding rails (Type A7), front bezel with key, 1-year warranty
