SERIES: Xeon Gold 6200 Series

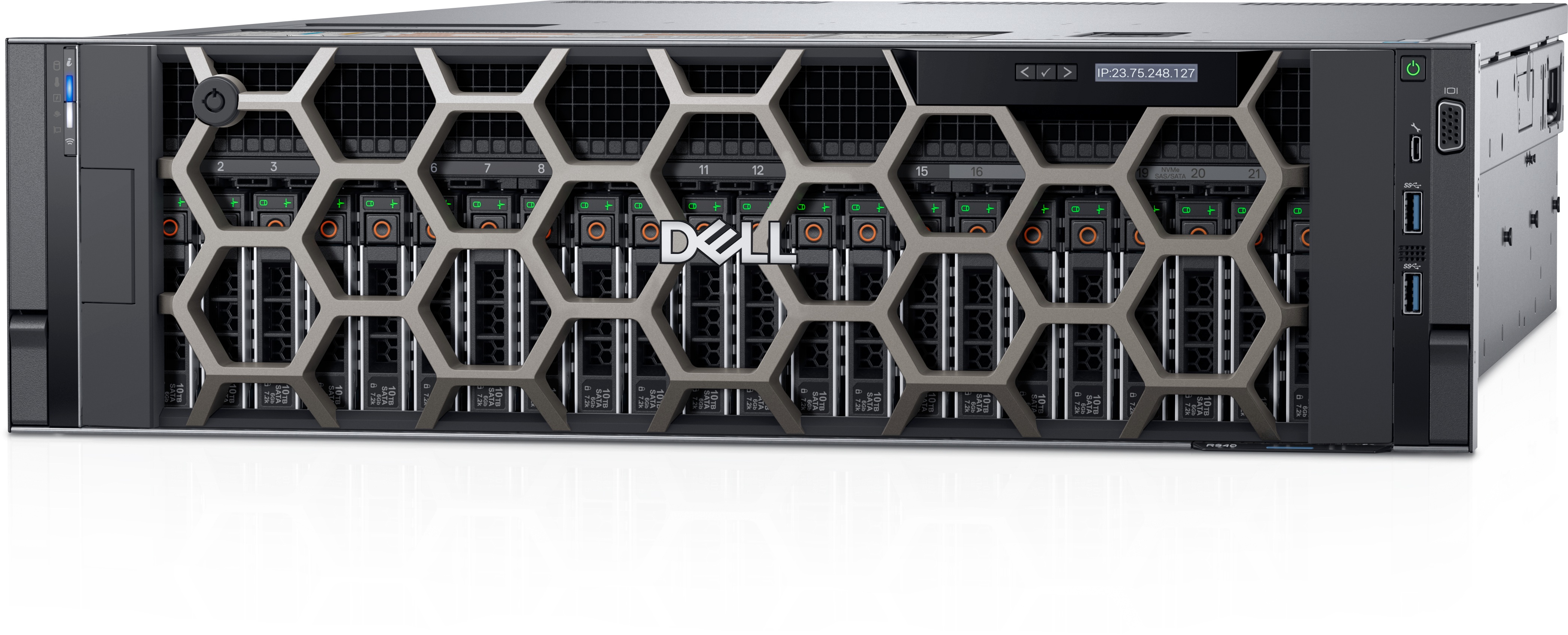

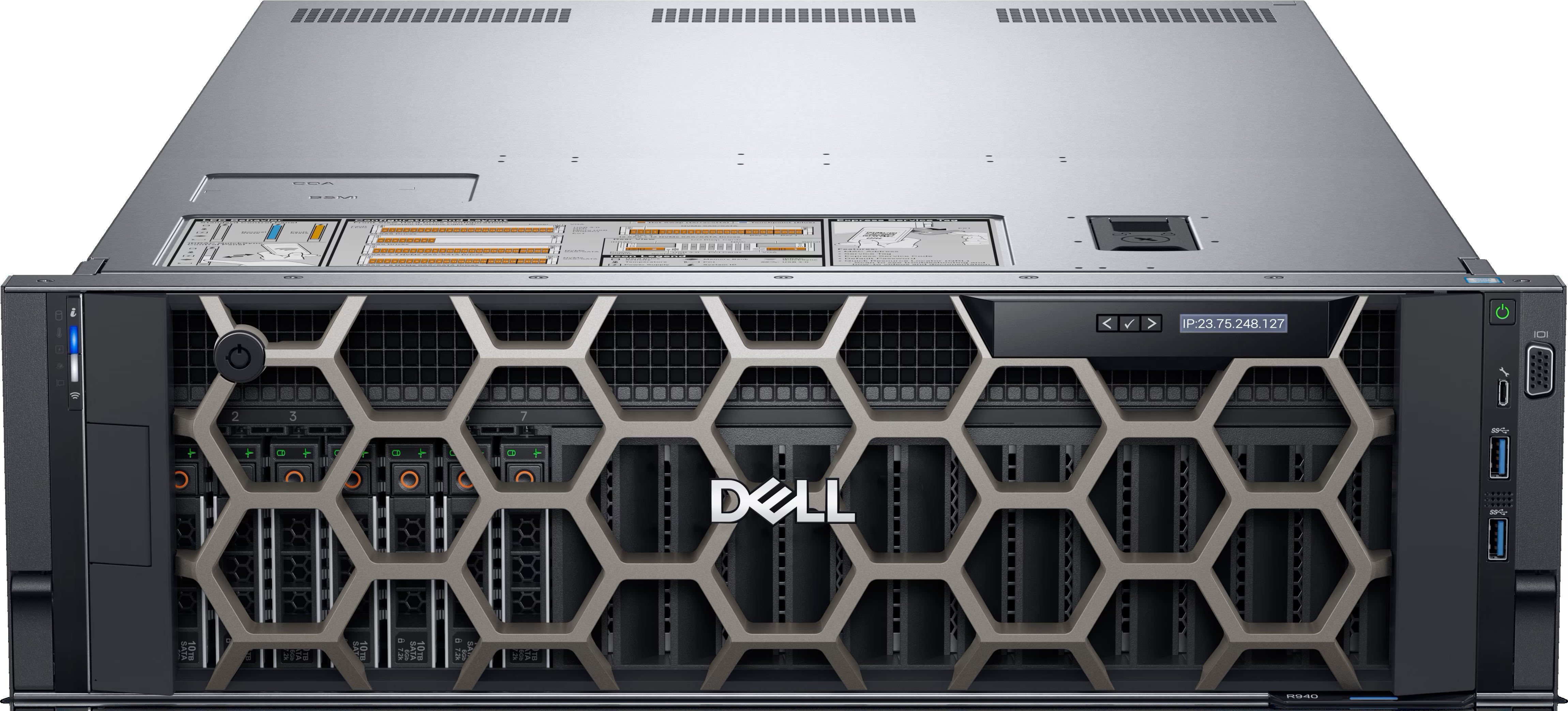

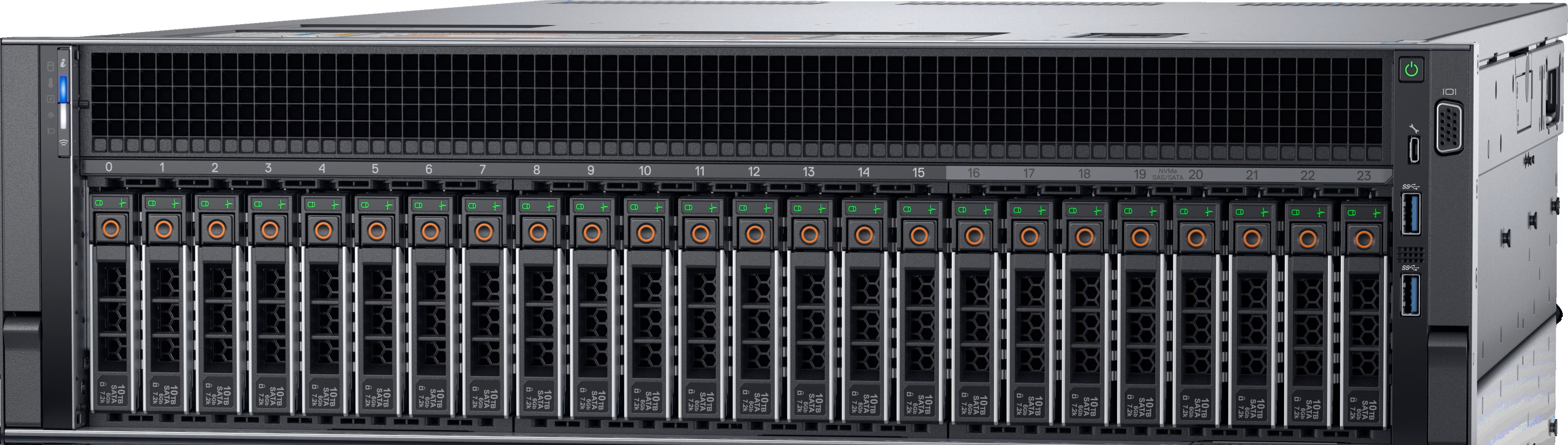

MODEL: PowerEdge R940
BRAND: Dell
PLATFORM: Enterprise Server
SUPPORTS: VMware, Windows Server, Linux
SPECIAL FEATURES: Hot-swappable drives and power supplies, iDRAC9 management, PERC HBA330 controller
FEATURES: Dual 1600W redundant PSUs, 4 CPU heatsinks, PERC HBA330, QLogic 10GbE, 2.5" chassis with 8-bay capacity
DETAILS: Dell Outlet PowerEdge R940 Server with no OS installed. Includes 4 x 1.92TB SAS SSDs and mixed 16GB/32GB RDIMMs.
WEBCAM: None
KEYBOARD TYPE: None (rack server)
HARD DRIVE: 1.92TB SSD SAS RI 12Gbps 512 2.5in Hot-Plug AG Drive [Qty:4] (Total: 7.68TB)
STORAGE (RAW): 7.68TB
DRIVE BAYS: SAS/SATA/NVMe, 2.5" or 3.5" hot-swappable
EXPANSION SLOTS: 7 x PCIe 3.0 slots (configuration dependent)
VIDEO: Integrated Matrox G200
LAN: QLogic FastLinQ 41164 Quad Port 10GbE BASE-T, rNDC
VIDEO OUTPUT: VGA
REAR PORTS: 4 x USB 3.0, 1 x VGA, 1 x serial, 4 x 10GbE RJ-45
USB PORTS: 2 x front panel, 2 x internal
INTERNAL IO: SAS/SATA backplane connectors
AUDIO: None
CPU: Dual Intel Xeon Gold 6240 Processor (18 Core, Up to 3.90GHz, 24.75MB Cache, 150W) [Qty:2]
CPU SPEED: 2.60GHz base, up to 3.90GHz turbo
BASE / TURBO: 2.60GHz
CORES: 36 (18 per CPU)
THREADS: 72 (36 per CPU)
CACHE: L2: 18MB, L3: 24.75MB per processor
SOCKET: LGA3647
SUPPORTED CPU: Intel Xeon Scalable Processors (Skylake-SP/Cascade Lake-SP)
THREADS: Intel
CACHE: Cascade Lake
SOCKET: Socket P (LGA3647)
INSTALLED: 16GB RDIMM, 2666MT/s, Dual Rank [Qty:24] + 32GB RDIMM 2666MT/s Dual Rank [Qty:24] (Total: 1.152TB)
SPEED: 2666MT/s
MODULE SIZE: 16GB + 32GB RDIMMs
TECHNOLOGY: DDR4 ECC Registered RDIMM
SLOTS: 24 (12 per CPU)
MAX CAPACITY: 6TB
TYPE: DDR4 ECC RDIMM
SPEED (MT/s): 2666MT/s
CHIPSET: Intel C621
HEAT SPREADER:Yes
FORM FACTOR: 3U Rackmount
CASE TYPE: 3U Rackmount
COLOR: Black
DIMENSIONS: Width: 482.0mm (19"), Height: 131.35mm (5.17"), Depth: 788.0mm (31.02")
POWER SUPPLY: 1600W Dual Hot-Plug Redundant Power Supply (1+1)
FANS: 4 CPU heatsinks, 3UPI, hot-swappable cooling fans
OTHER INFO: Includes 2 x power cords (125V, C13, 15A, 3M)
