MODEL: X540-10G-2T
BRAND: 10Gtek
SPECIAL FEATURES: Intel X540 controller, Dual RJ45 ports, Low-profile bracket included
FEATURES: 10Gbps throughput, Jumbo frame support, VLAN tagging, QoS support
DETAILS: PCI Express 2.1 x8 interface with backward compatibility to x16 slots. Supports intelligent offloads for improved server performance.

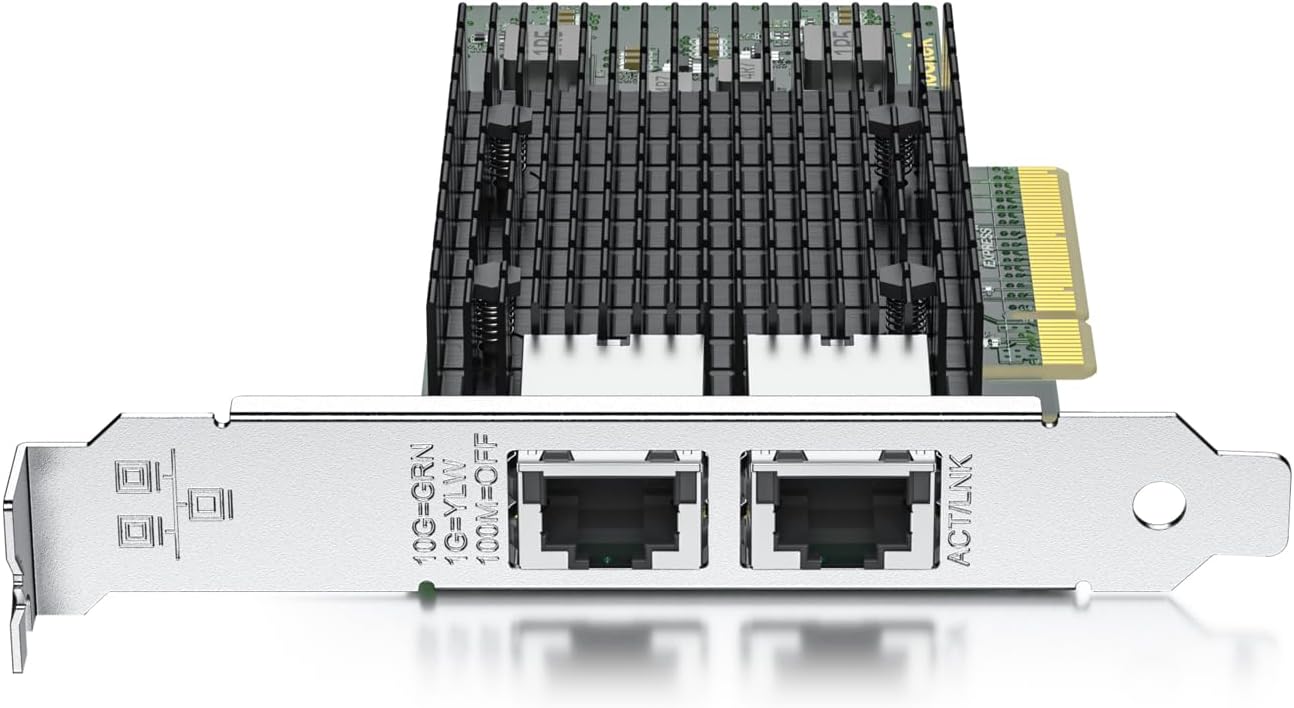

CONNECTOR TYPE: RJ45
CABLE CATEGORY: Cat6A (up to 100m), Cat6 (up to 55m)
DATA TRANSFER RATE: 10 Gigabits Per Second
COMPATIBLE DEVICES: Server, Desktop
COMPATIBLE BRANDS: Intel (compatible with X540-T2)
PORT TYPE: 10GbE/1GbE/100Mb Ethernet
PORT COUNT: 2
JUMBO FRAME SUPPORT: Yes (up to 15.5 KB)
VLAN SUPPORT: Yes (802.1q)
QOS SUPPORT: Yes (802.1p)
MOUNTING TYPE: Low-profile bracket included
OPERATING TEMP: Standard operating temperature range
CERTIFICATIONS: PCIe 2.1, Data Center Bridging (802.1Qaz, 802.1Qbb)
SECURITY FEATURES: VLAN tagging, QoS prioritization
UPC CODE: ASIN: B01HMGWOU8
PART NUMBER: X540-10G-2T

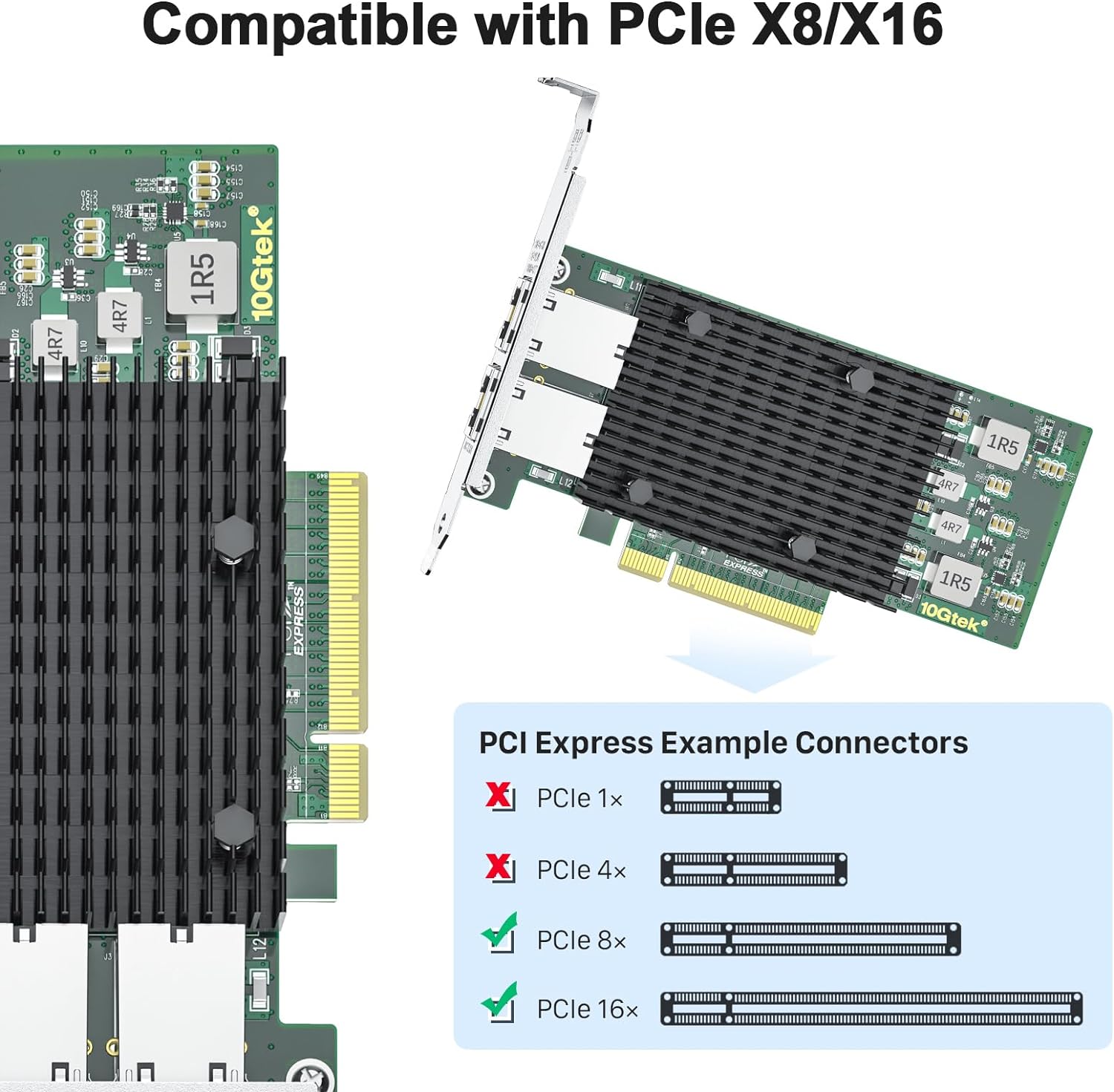

FORM FACTOR: PCIe x8 (compatible with x16 slots)
CASE TYPE: Standard and low-profile bracket included
DIMENSIONS: 8.8 x 5.7 x 1.2 inches
OTHER INFO: Includes 3-year warranty and lifetime technical support. Not hot-swappable. Windows 11 requires manual driver setup.
